iOS关于菜单滚动视图实现

时间:2016-01-22 14:50来源:未知 作者:最模板 点击:
菜单滚动视图也是在项目开发过程中比较常用到的功能,先直接看效果图 实现的效果如下: 当菜单个数的总长度超过一个屏宽度就计算每一个的文字宽度,若没有则只进行一个屏平分

菜单滚动视图也是在项目开发过程中比较常用到的功能,先直接看效果图

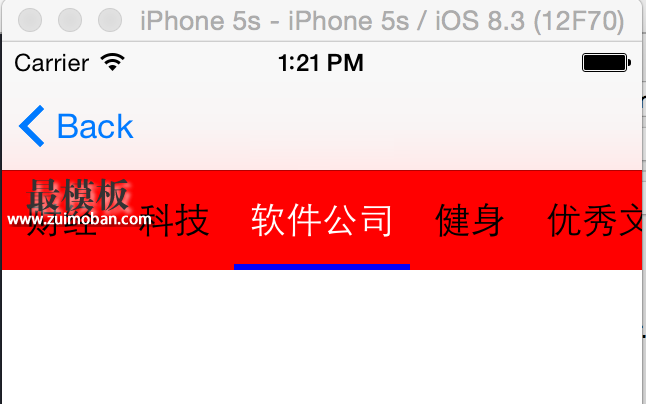

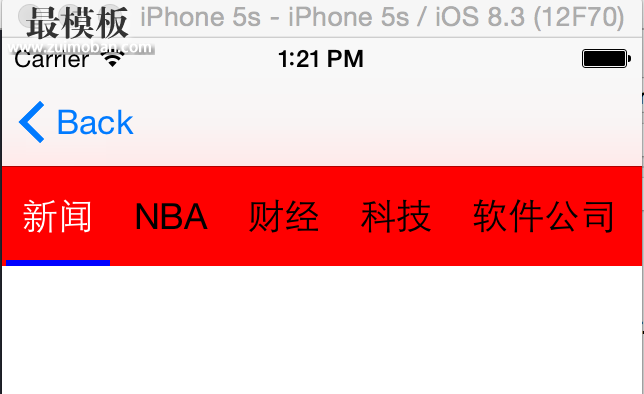

实现的效果如下:

当菜单个数的总长度超过一个屏宽度就计算每一个的文字宽度,若没有则只进行一个屏平分,点击菜单项时,滚动的视图位置会随着调整;下面将会把代码贴出来;

1:控制器.h文件的内容

复制代码
//
//  myScrollerViewController.h
//  testTest
//
//  Created by wujunyang on 16/1/22.
//  Copyright © 2016年 wujunyang. All rights reserved.
//

#import <UIKit/UIKit.h>

@protocol myScrollTabBarDelegate <NSObject>

@optional

- (void)itemDidSelectedWithIndex:(NSInteger)index;

@end

@interface myScrollerViewController : UIViewController

@property (nonatomic, weak) id  <myScrollTabBarDelegate>delegate;
@property (nonatomic, assign) NSInteger currentIndex;
@property(nonatomic,copy)NSArray *myTitleArray;
@end
复制代码

注意:这边创建的一个delegate,主要是为了当点击事件时把相应的动作往外传,并把相应的菜单索引值传出,方便做其它操作

2:.m控制器的内容

复制代码
#import "myScrollerViewController.h"

#define SCREEN_WIDTH  ([UIScreen mainScreen].bounds.size.width)
#define SCREEN_HEIGHT ([UIScreen mainScreen].bounds.size.height)
#define TABBAR_TITLE_FONT [UIFont systemFontOfSize:18.f]
#define NAV_TAB_BAR_HEIGHT 50
#define NAV_TAB_BAR_Width  SCREEN_WIDTH

@interface myScrollerViewController ()
//滚动视图
@property(strong,nonatomic)UIScrollView *myScrollView;
//滚动下划线
@property(strong,nonatomic)UIView *line;
//所有的Button集合
@property(nonatomic,strong)NSMutableArray  *items;
//所有的Button的宽度集合
@property(nonatomic,copy)NSArray *itemsWidth;
//被选中前面的宽度合(用于计算是否进行超过一屏,没有一屏则进行平分)
@property(nonatomic,assign)CGFloat selectedTitlesWidth;

@end

@implementation myScrollerViewController

- (void)viewDidLoad {
    [super viewDidLoad];

    self.automaticallyAdjustsScrollViewInsets=NO;

    self.view.backgroundColor=[UIColor whiteColor];

    //初始化数组
    if (!self.myTitleArray) {
        self.myTitleArray=@[@"新闻",@"NBA",@"财经",@"科技",@"软件公司",@"健身",@"优秀文摘"];
    }

    self.items=[[NSMutableArray alloc]init];
    self.itemsWidth=[[NSArray alloc]init];

    //初始化滚动
    if (!self.myScrollView) {
        self.myScrollView=[[UIScrollView alloc]initWithFrame:CGRectMake(0, 64, NAV_TAB_BAR_Width, NAV_TAB_BAR_HEIGHT)];
        self.myScrollView.backgroundColor=[UIColor redColor];
        self.myScrollView.showsHorizontalScrollIndicator = NO;
        self.myScrollView.showsVerticalScrollIndicator = NO;
        [self.view addSubview:self.myScrollView];
    }

    //赋值跟计算滚动
    _itemsWidth = [self getButtonsWidthWithTitles:self.myTitleArray];
    CGFloat contentWidth = [self contentWidthAndAddNavTabBarItemsWithButtonsWidth:_itemsWidth];
    self.myScrollView.contentSize = CGSizeMake(contentWidth, 0);

    self.currentIndex=0;
}

/**
 *  @author wujunyang, 16-01-22 13:01:45
 *
 *  @brief  计算宽度
 *
 *  @param titles <#titles description#>
 *
 *  @return <#return value description#>
 *
 *  @since <#version number#>
 */
- (NSArray *)getButtonsWidthWithTitles:(NSArray *)titles;
{
    NSMutableArray *widths = [@[] mutableCopy];
    _selectedTitlesWidth = 0;
    for (NSString *title in titles)
    {
        CGSize size = [title boundingRectWithSize:CGSizeMake(CGFLOAT_MAX, CGFLOAT_MAX) options:NSStringDrawingUsesLineFragmentOrigin attributes:@{NSFontAttributeName : TABBAR_TITLE_FONT} context:nil].size;
        CGFloat eachButtonWidth = size.width + 20.f;
        _selectedTitlesWidth += eachButtonWidth;
        NSNumber *width = [NSNumber numberWithFloat:eachButtonWidth];
        [widths addObject:width];
    }
    if (_selectedTitlesWidth < NAV_TAB_BAR_Width) {
        [widths removeAllObjects];
        NSNumber *width = [NSNumber numberWithFloat:NAV_TAB_BAR_Width / titles.count];
        for (int index = 0; index < titles.count; index++) {
            [widths addObject:width];
        }
    }
    return widths;
}
/**
 *  @author wujunyang, 16-01-22 13:01:14
 *
 *  @brief  初始化Button
 *
 *  @param widths <#widths description#>
 *
 *  @return <#return value description#>
 *
 *  @since <#version number#>
 */
- (CGFloat)contentWidthAndAddNavTabBarItemsWithButtonsWidth:(NSArray *)widths
{
    CGFloat buttonX = 0;
    for (NSInteger index = 0; index < widths.count; index++)
    {
        UIButton *button = [UIButton buttonWithType:UIButtonTypeCustom];
        button.frame = CGRectMake(buttonX, 0, [widths[index] floatValue], NAV_TAB_BAR_HEIGHT);
        button.titleLabel.font = TABBAR_TITLE_FONT;
        button.backgroundColor = [UIColor clearColor];
        [button setTitle:self.myTitleArray[index] forState:UIControlStateNormal];
        [button setTitleColor:[UIColor blackColor] forState:UIControlStateNormal];
        [button addTarget:self action:@selector(itemPressed:) forControlEvents:UIControlEventTouchUpInside];
        [self.myScrollView addSubview:button];

        [_items addObject:button];
        buttonX += [widths[index] floatValue];
    }
    if (widths.count) {
        [self showLineWithButtonWidth:[widths[0] floatValue]];
    }
    return buttonX;
}

/**
 *  @author wujunyang, 16-01-22 13:01:33
 *
 *  @brief  选中
 *
 *  @param currentIndex 选中索引
 *
 *  @since <#version number#>
 */
- (void)setCurrentIndex:(NSInteger)currentIndex
{
    _currentIndex = currentIndex;
    UIButton *button = nil;
    button = _items[currentIndex];
    [button setTitleColor:[UIColor whiteColor] forState:UIControlStateNormal];
    CGFloat offsetX = button.center.x - NAV_TAB_BAR_Width * 0.5;
    CGFloat offsetMax = _selectedTitlesWidth - NAV_TAB_BAR_Width;
    if (offsetX < 0 || offsetMax < 0) {
        offsetX = 0;
    } else if (offsetX > offsetMax){
        offsetX = offsetMax;
    }
    [self.myScrollView setContentOffset:CGPointMake(offsetX, 0) animated:YES];
    [UIView animateWithDuration:.2f animations:^{
        _line.frame = CGRectMake(button.frame.origin.x + 2.0f, _line.frame.origin.y, [_itemsWidth[currentIndex] floatValue] - 4.0f, _line.frame.size.height);
    }];
}

/**
 *  @author wujunyang, 16-01-22 13:01:47
 *
 *  @brief  增加下划线
 *
 *  @param width Button的宽
 *
 *  @since <#version number#>
 */
- (void)showLineWithButtonWidth:(CGFloat)width
{
    _line = [[UIView alloc] initWithFrame:CGRectMake(2.0f, NAV_TAB_BAR_HEIGHT - 3.0f, width - 4.0f, 3.0f)];
    _line.backgroundColor = [UIColor blueColor];
    [self.myScrollView addSubview:_line];
}

- (void)cleanData
{
    [_items removeAllObjects];
    [self.myScrollView.subviews makeObjectsPerformSelector:@selector(removeFromSuperview)];
}

/**
 *  @author wujunyang, 16-01-22 11:01:27
 *
 *  @brief  选中时的事件
 *
 *  @param button <#button description#>
 *
 *  @since <#version number#>
 */
- (void)itemPressed:(UIButton *)button
{
    NSInteger index = [_items indexOfObject:button];
    self.currentIndex=index;

    if ([self.delegate respondsToSelector:@selector(itemDidSelectedWithIndex:)]) {
        [self.delegate itemDidSelectedWithIndex:index];
    }

    //修改选中跟没选中的Button字体颜色
    for (int i=0; i<_items.count; i++) {
        if (i==index) {
            [button setTitleColor:[UIColor whiteColor] forState:UIControlStateNormal];
        }
        else
        {
             [_items[i] setTitleColor:[UIColor blackColor] forState:UIControlStateNormal];
        }
    }



    [UIView animateWithDuration:0.1 animations:^{
        button.transform = CGAffineTransformMakeScale(1.1, 1.1);
    } completion:^(BOOL finished) {
        [UIView animateWithDuration:0.1 animations:^{
            button.transform = CGAffineTransformIdentity;
        }completion:^(BOOL finished) {

        }];
    }];
}


- (void)didReceiveMemoryWarning {
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}

@end
复制代码

代码都有进行相应的注解,接下来会对它进行整理,把它移到通用的MVC项目框架中,方便以后项目使用;
